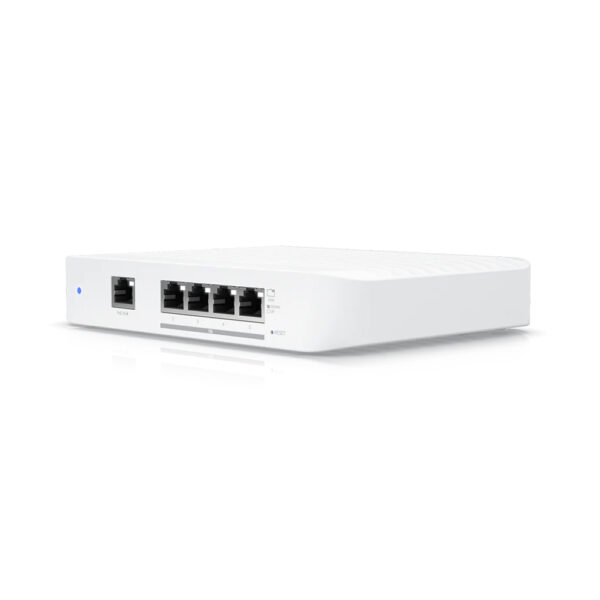

Ubiquiti Unifi Switch Flex XG (USW-Flex-XG)

A compact, five-port, Layer 2 switch that supports 10GbE speeds and can be powered with PoE or a 5V USB-C adapter*.

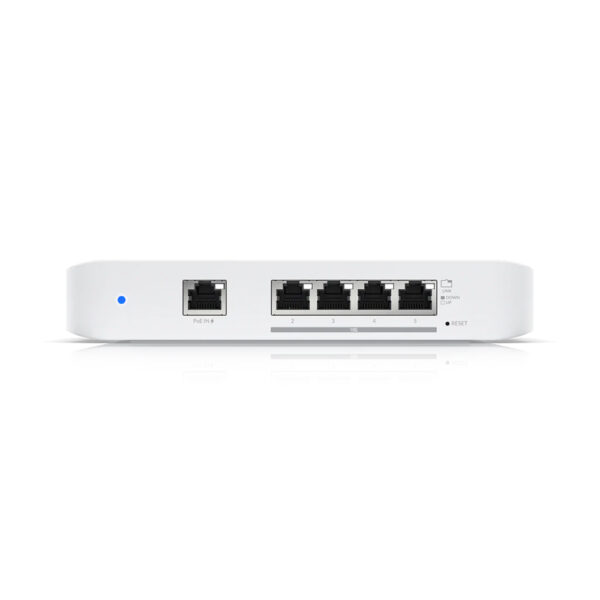

– (1) GbE, PoE+ RJ45 input

– (4) 10GbE RJ45 ports

Managed with the UniFi Network application: Version 6.1.67 and later

*Only single-unit packages include the 5V, 5A USB-C power adapter.

13,500.00 ฿


line oa gain friends
line oa gain friends


Dimensions 135 x 185 x 32 mm (5.31 x 7.28 x 1.27″)
Weight 1.2 kg (2.65 lb)
Enclosure Material Polycarbonate
Total Non-Blocking Throughput 41 Gbps
Switching Capacity 82 Gbps
Forwarding Rate 61.012 Mpps
Max Power Consumption 25W
Power Method (1) PoE+, 50-57VDC, 25W
(1) USB Type-C, 5VDC, 5A
Power Supply PoE+ (Pins 1, 2+/3, 6- or 4, 5+/7, 😎
AC/DC Power Adapter, 5VDC, 5A, 1.5 m Cord (Included)
Supported Voltage Range 90 to 264VAC (Adapter)
Management Interface Ethernet In-Band
Networking Interfaces (1) 10/100/1000 Mbps RJ45 Ethernet
(4) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet
Services SMB Layer 2 Gigabit Ethernet Switch
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Button Factory Reset
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 – 90% Noncondensing
Certifications CE, FCC, IC
System (1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue: Firmware
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Ethernet White: Link or Activity
